Water Coils
FILE DOWNLOADS
Installation and Operation Manual
Water Coils Overview
Engineered for maximum performance and durability, our HVAC water coils deliver efficient heat transfer in both chilled and hot water applications. Whether you’re upgrading an air handling unit, retrofitting a fan coil system, or designing a new commercial HVAC installation, our coils are built to meet the highest standards of quality and efficiency.
Custom-built to your specs –wide range of sizes, rows, fin spacing, and materials
High-performance design –optimized for airflow and thermal efficiency
Durable materials –copper tubing, aluminum fins, stainless steel casing options
Energy-efficient –lower operational costs and longer service life
AHRI & ASME compliant –tested and certified for industry-standard performance
From office buildings to industrial plants, our water coils are trusted by HVAC professionals for reliable climate control. We also offer fast lead times, competitive pricing, and expert engineering support.

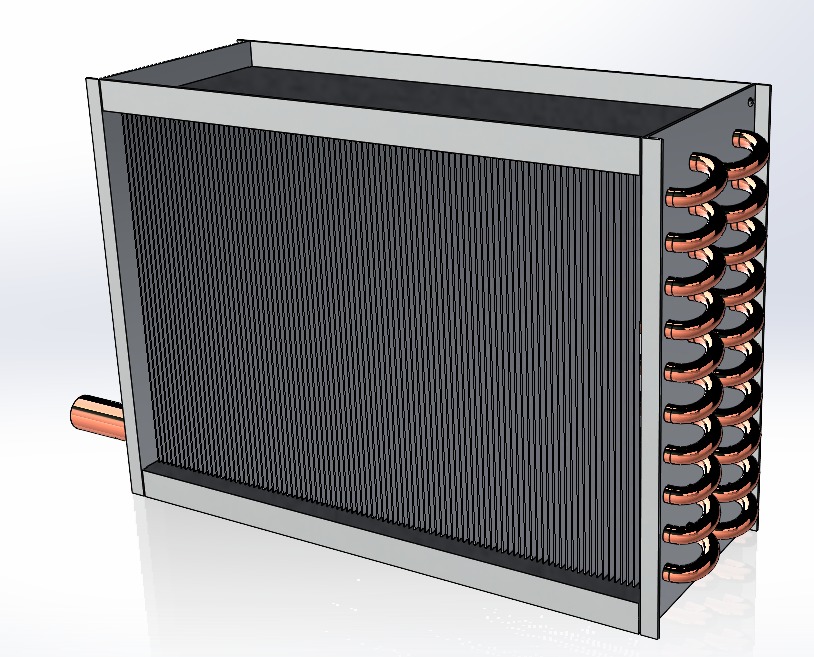

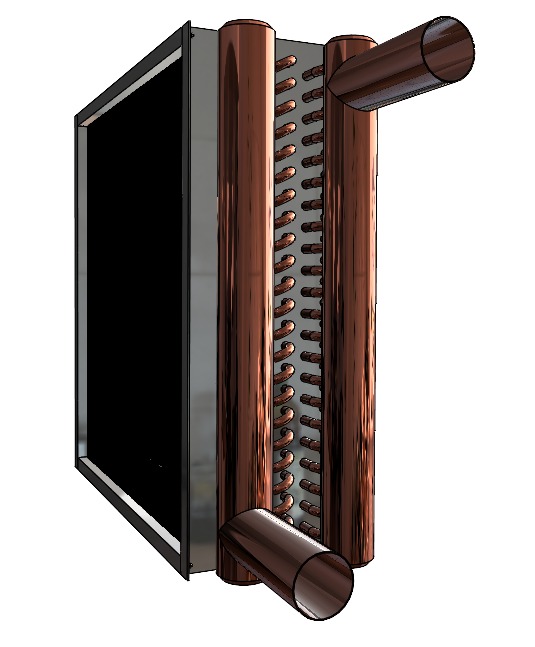

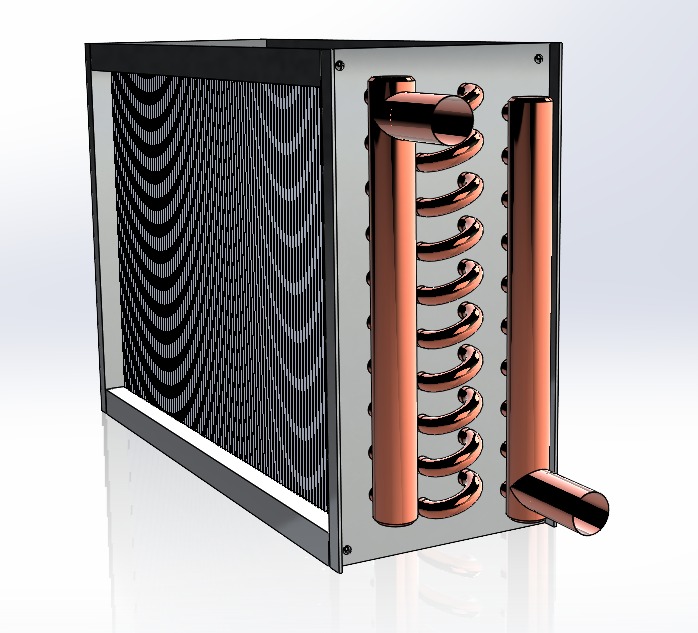

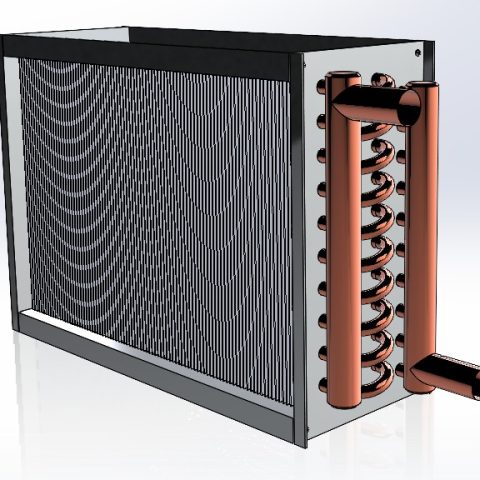

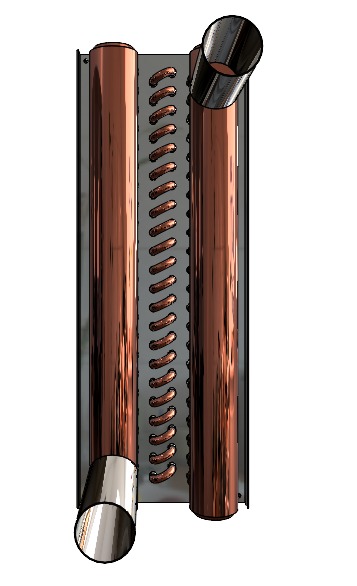

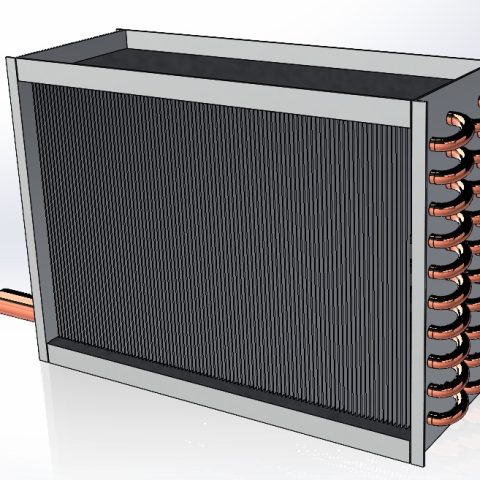

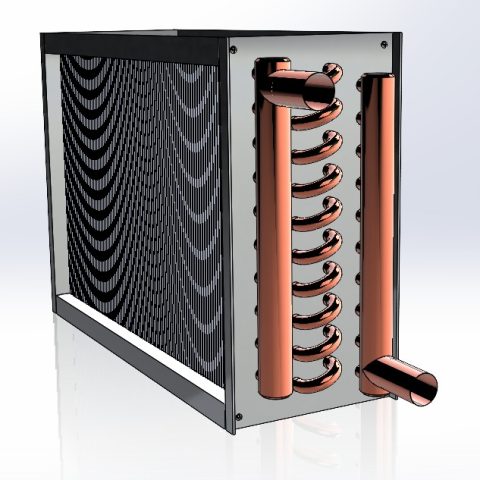

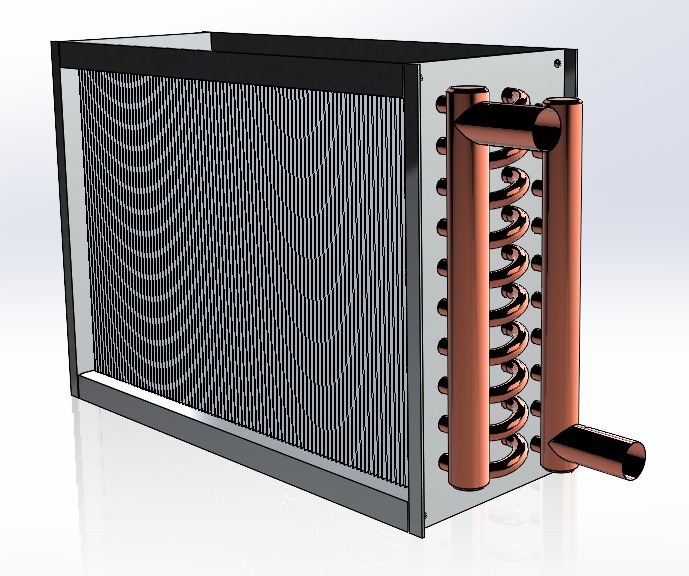

GALLERY
CONSTRUCTION OPTIONS
|
Component |
Material |
Type & Dimensions |
|
Tubes |
Copper, Aluminum, Steel, Stainless Steel, Copper- Nickel |
Diameter: 5/16”, 3/8”, ½”, 5/8” Wall Thickness: 0.012”- 0.049” |
|
Fins |
Aluminum, Copper |
Shine Wave, Flat or corrugated. Thickness: 0.006”, 0.008”, 0.010” |
|
Frame |
Galvanized, 304 & 316 Stainless Steel, Aluminum, Copper |
Gauges: 12, 14, 16, 18 |
|
Connections |
Copper, Steel, Red Brass, Stainless Steel |
Sweat, NPT, Grooved, Flanged. From ½” to 4” |
|
Coating |
AA, Heresite, Electro-Fin, Blygold PPG |
|
|
Accessories |
Intermediate drain pan, Drain/Vent Connections, Turbulators |
|
Certification stamps
