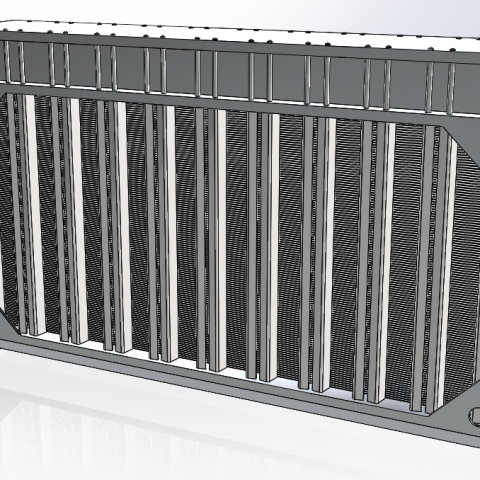

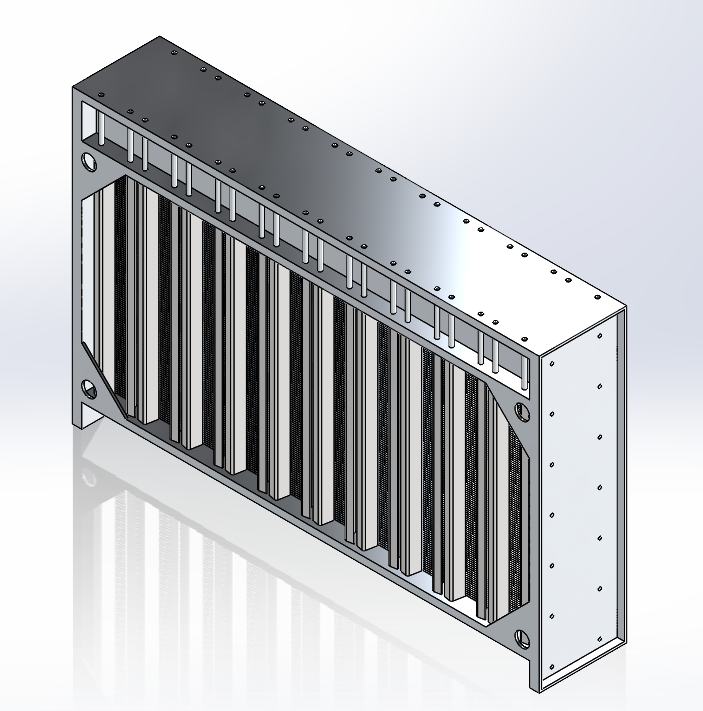

Integral Face & ByPass

Ideal for climates where temperatures fall below or near freezing

The IFB provides the most reliable method of preheating and tempering fresh outside air, while minimizing the possibility of freezing.

In standard steam and hot water coils, the steam or water temperature is modulated in an attempt to control the temperature of incoming air – which can cause condensate to build up and freeze inside the coil, damaging the tubes or causing them to burst. But the IFB maintains either full steam pressure or hot water flow to the coil at all times, so no condensate can build up or freeze.

In addition to eliminating freezing, the IFB also provides more accurate temperature control. Its dampers are automatically repositioned to maintain a set leaving air temperature, even as outside air temperatures change significantly. The positioning of the dampers allows proportioned quantities of air to either flow through the heating surface or to bypass the heating surface to achieve the required discharge air temperature.

The IFB provides a better and more cost-effective solution than either the use of a separate heating coil to heat incoming air, or the use of a more traditional face and bypass damper configuration. In addition, the IFB mixes the air in a much shorter distance downstream of the unit, creating a more uniform temperature.

The IFB is rated in accordance with AHRI 410 and itis available in multiple configurations and sizes.
