Industrial Coils Overview
Solutions for any challenge including extreme temperatures, corrosive environments, precise humidity control, tight temperature tolerances, process airstream isolation, special fluid requirements, and many more. With our extensive engineering capabilities and our capacity to manufacture with a wide range of materials we can deliver a solution to any process heating or process cooling need.
Contact one of our representatives today to collect the required information for your specific design.

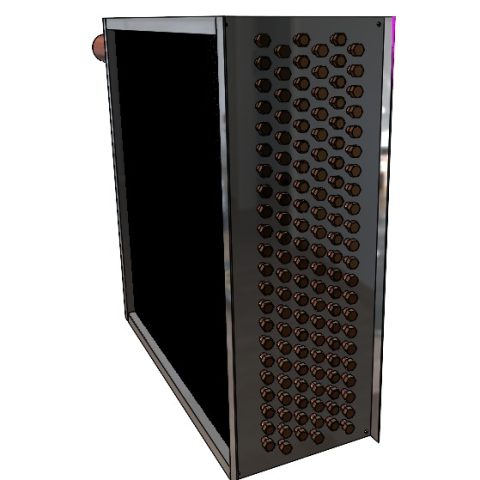

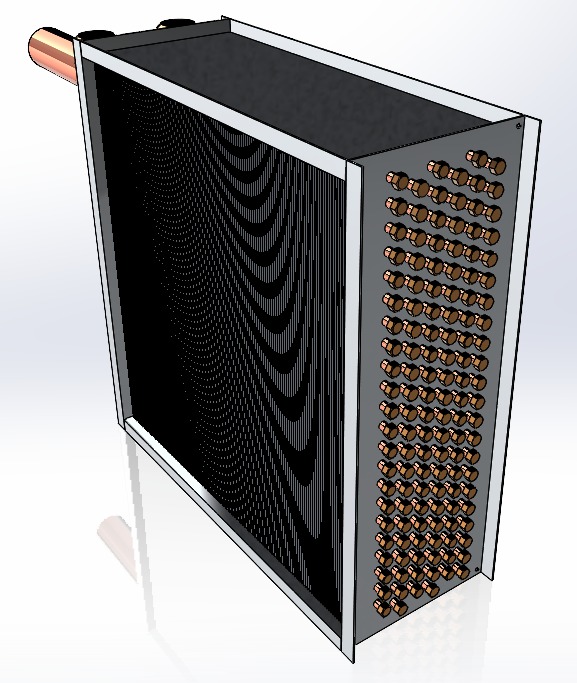

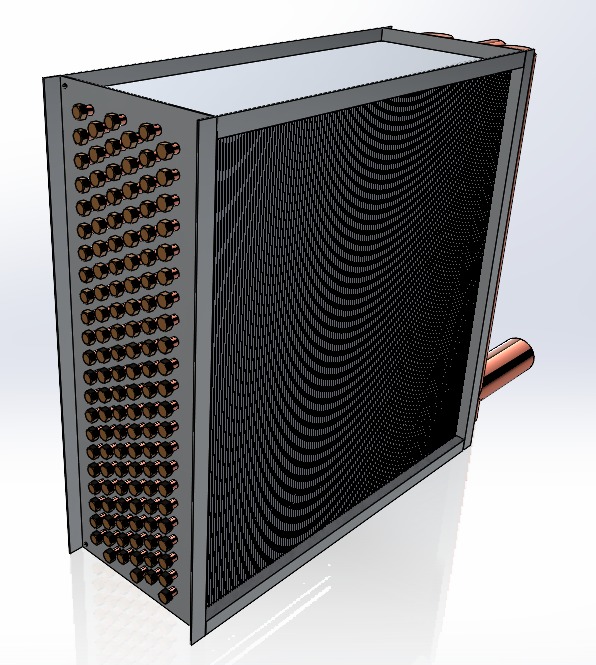

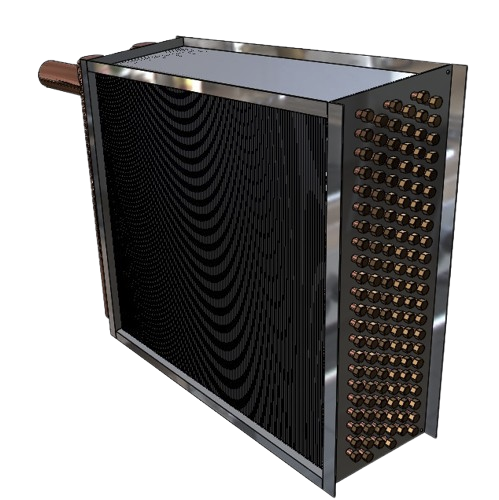

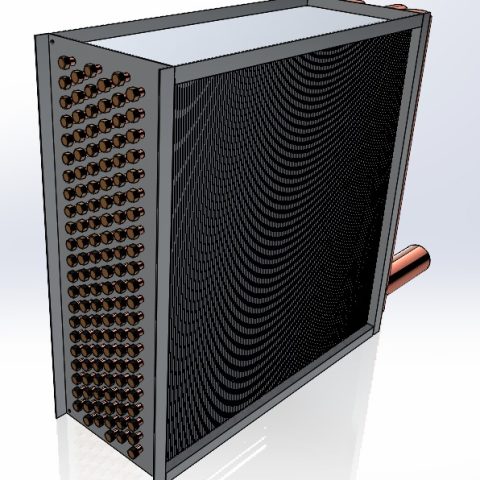

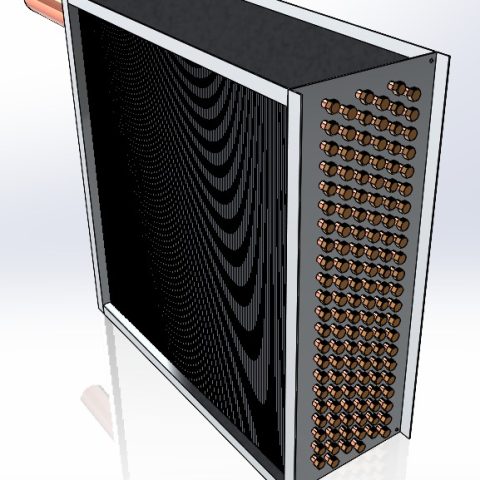

GALLERY
CONSTRUCTION OPTIONS
|
Component |
Material |
Type & Dimensions |
|
Tubes |
Copper, Aluminum, Steel, Stainless Steel, Copper- Nickel |
Diameter: 5/16”, 3/8”, ½”, 5/8” Wall Thickness: 0.012”- 0.049” |
|
Fins |
Aluminum, Copper |
Shine Wave, Flat or corrugated. Thickness: 0.006”, 0.008”, 0.010” |
|
Frame |
Galvanized, 304 & 316 Stainless Steel, Aluminum, Copper |
Gauges: 12, 14, 16, 18 |
|
Connections |
Copper, Steel, Red Brass, Stainless Steel |
Sweat, NPT, Grooved, Flanged. From ½” to 4” |
|
Coating |
AA, Heresite, Electro-Fin, Blygold PPG |
|
|
Accessories |
Intermediate drain pan, Drain/Vent Connections, Turbulators |
|
Certification stamps
